PRODUCT HIGHLIGHTS

01
Reduced maintenance costs
Lower cost of ownership with highly versatile parts and components
Rapid, convenient transportation with forklift slots and lifting point
Swing-door design for easy maintenance
02
Efficient and environmentally friendly
Higher work efficiency
Environmental protection, zero emissions
Folding guardrails for easy transport
03
Reliable performance
Equipped with emergency descent system to ensure the personal safety of operators
Pothole protection system as standard

FEATURES

Standard configuration
Proportional controls	Self-lock gate on platform	Unidirectional platform extension
Drivable at full height	Non-Marking Tires	Hydraulic motor drive-SC16H
DC motor drive-SC16E	Automatic Braking System	Emergency Descent System
Emergency stop	Tubing Explosion-Proof System	Fault diagnosis system
Tilt protection system	All Motion Alarm	Horn
Scissor Maintenance Prop	Fork Lift Pockets	Charging Protection System
Flashing beacon	Foldable Guard Rails	Automatic pothole protection
Overload sensor
Optional configuration
AC power on the platform	platform working lights	Air pipe to the platform

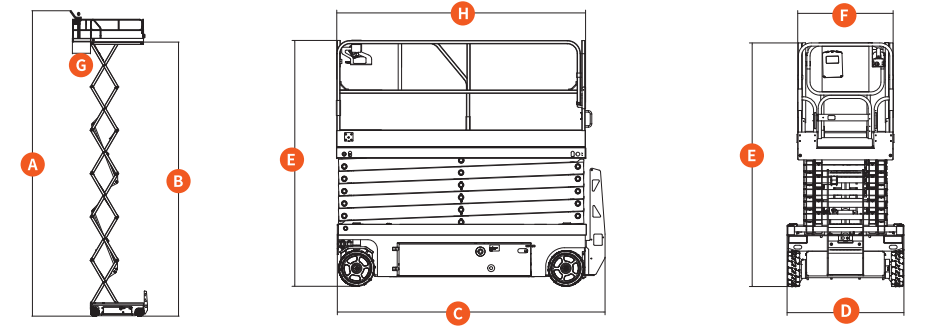

Dimensions	SC16H (Indoors)	SC16E (Indoors)
Maximum Working Height (A)	15.7m	15.7m
Maximum Platform Height (B)	13.7m	13.7m
Overall Length (C)	2.48m	2.48m
Overall width (D)	1.25m	1.25m
Overall Height (Rails up) (E)	2.58m	2.58m
Overall Height( Rails down)	2.17m	2.17m
Platform Dimensions (Length/Width)(H)(F)	2.64xl.02m	2.64xl.02m
Maximum horizontal extension(G)	0.9m	0.9m
Minimum Ground Clearance (Stowed)	0.10m	0.10m
Minimum Ground Clearance (Raised)	0.019m	0.019m
Wheel Base	2.22m	2.22m
Performance
Platform Allowable Occupants (indoors)	2	2
S.W.L.	250kg	250kg
S.W.L. On Extension	113kg	H3kg
Travel Speed (Stowed)	3.2km/h	4.0km/h
Travel Speed (Raised)	0.8km/h	0.8km/h
Up/Down Time	60/60sec	60/60sec
Maximum Gradeability	25%	25%
Minimum Turning Radius	2.5m	2.5m
Maximum Working Slope	1.573°	1.573°
Tire	Φ381x127mm	Φ381x127mm
Power
Lead-acid battery	24V300Ah/20HR	24V300Ah/20HR
Batteries Maintenance-free battery	24V200Ah/3HR	24V200Ah/3HR
Lithium battery	25.6V/206Ah	25.6V/206Ah
Integrated Charger	24V/30A	24V/30A
Drive Mode	Hydraulic motor, front-wheel	Electric motor, front-wheel
Lifting Motor	24V DC/4.5kw	24V DC/4.5kw
Drive Motor		2x24V DC/0.82kw
Weight
Overall Weight	3420kg	3420kg
We reserve the right to make specification changes without notification. The above represents the current specifications at time of publication. 03.2025

STRUCTURAL DIAGRAM
