Dual load capacities:230kg/350kg.
48V/420Ah LFP/LA battery.
AWD driven &AC power make the gradeability enhance 40%.
G-valve technology makes betterenergy efficiency.
Please submit your message online and we will contact you as soon as possible!
Please submit your message online and we will contact you as soon as possible!
Dual load capacities:230kg/350kg.
48V/420Ah LFP/LA battery.
AWD driven &AC power make the gradeability enhance 40%.
G-valve technology makes betterenergy efficiency.
| Model | NAB22EJ |
| Specifications | |
|---|---|

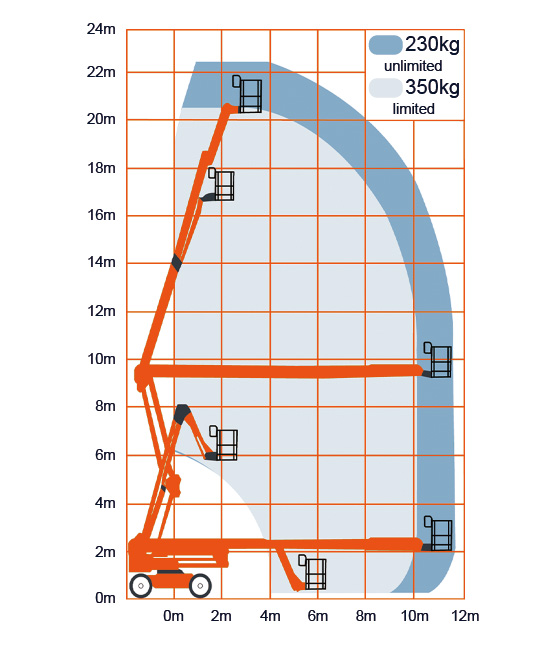

| Max.Working Height | 22.5m |
| Max.Platform Height | 20.5m |
| Max.Up and Over Clearance | 9.4m |
| Max.Working Radius | 11.8m |

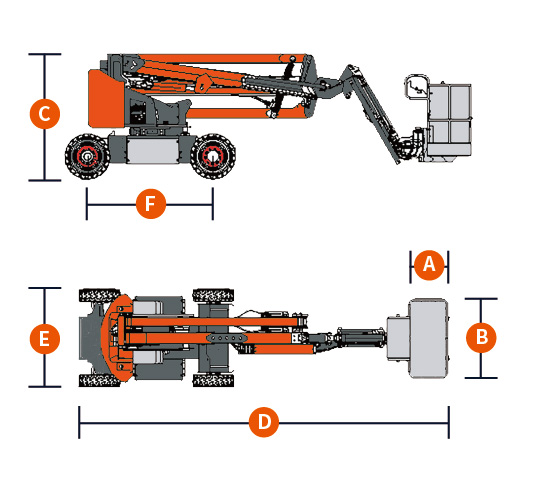

| A Platform Width | 0.76m |
| ⑧Platform Length | 1.8m |
| ⑥Height-Stowed | 2.38m |
| DLength-Stowed | 8.49m |
| ⑤Width | 2.49m |
| ⑥Wheelbase | 2.5m |
| Ground Clearance-Center | 0.3m |
| Standard container transportation | |
| Productivity | |
| Max.Lift Capacity | 230kg(unlimited)/350kg(limited) |
| Platform Occupancy | 45691 |
| Platform Rotation | ±80° |
| Turntable Rotation | 360°continuous |
| Vertical jib Rotation (up/down) | ±70° |
| Drive Speed-Stowed | 5.0km/h |
| Gradeability-Stowed | 0.45 |
| Max.Working Angle | 3° |
| Turning Radius(outside) | 4.18m |
| Drive and Steer | 4x2 |
| Weight | 10000kg |
| Tire | 33x12-20 |
| Power | |
| Battery | 48V/420Ah |
| Control Voltage | 12V |
| Pump Power | 12kw |
| Drive Motor | 3.3kw |
| Charger | 48V/60A |
| Hydraulic Tank | 105L |
| Emergency Power System | 12V |
| Optional | |
| LFP Battery | Optional |
| Solid Non-marking Tires | Optional |
