ELECTRIC SCISSOR LIFTS

SC12H/SC12E

SC3345H/SC3345E

  • ISO

  • CE

  • ANSI

  • KCS

  • EAC

Automatic Braking System

Automatic pothole protection

Emergency stop

Tilt protection system

PRICE INQUIRY DOWNLOAD BROCHURES

Please submit your message online and we will contact you as soon as possible!

Model：
Title：
* Company：
* Name：
* Phone：
* Email：
* Content：
DOWNLOAD BROCHURES
Metric Units
Imperial Units
PRODUCT HIGHLIGHTS
  • 01
    Reduced maintenance costs

    Lower cost of ownership with highly versatile parts and components

    Rapid, convenient transportation with forklift slots and lifting point

    Drawer-door design for easy maintenance

  • 02
    Efficient and environmentally friendly

    Higher work efficiency

    Environmental protection, zero emissions

    Folding guardrails for easy transport

  • 03
    Reliable performance

    Equipped with emergency descent system to ensure the personal safety of operators

    Pothole protection system as standard

FEATURES
Standard configuration
Proportional controlsSelf-lock gate on platformUnidirectional platform extension
Drivable at full heightNon-Marking TiresHydraulic motor drive-SC12H
DC motor drive-SC12EAutomatic Braking SystemEmergency Descent System
Emergency stopTubing Explosion-Proof SystemFault diagnosis system
Tilt protection systemAll Motion AlarmHorn
Scissor Maintenance PropFork Lift PocketsCharging Protection System
Flashing beaconFoldable Guard RailsAutomatic pothole protection
Overload sensor

Optional configuration
AC power on the platformPlatform working lightsAir pipe to the platform
DimensionsSC12H (Indoors/Outdoors)SC12E (Indoors)
Maximum Working Height (A)12m12m
Maximum Platform Height (B)10m10m
Overall Length (C)2.48m2.48m
Overall width (D)1.15m1.15m
Overall Height (Rails up) (E)2.24m2.24m
Overall Height( Rails down)1.92m1.92m
Platform Dimensions (Length/Width)(H)(F)2.27x1.12m2.27x1.12m
Maximum horizontal extension(G)0.9m0.9m
Minimum Ground Clearance (Stowed)0.10m0.10m
Minimum Ground Clearance (Raised)0.019m0.019m
Wheel Base1.87m1.87m
Performance
Platform Allowable Occupants (indoors)2/12/1
S.W.L.320kg320kg
S.W.L. On Extension113kgH3kg
Travel Speed (Stowed)3.2km/h4.0km/h
Travel Speed (Raised)0.8km/h0.8km/h
Up/Down Time48/48sec48/48sec
Maximum Gradeability25%25%
Minimum Turning Radius2.5m2.5m
Maximum Working Slope1.5°/3°1.5°/3°
TireΦ381x127mmΦ381x127mm
Power
Lead-acid battery24V225Ah/20HR24V225Ah/20HR
Batteries Maintenance-free battery24V200Ah/3HR24V200Ah/3HR
 Lithium battery25.6V/206Ah25.6V/206Ah
Integrated Charger24V/30A24V/30A
Drive ModeHydraulic motor, front-wheelHydraulic motor, front-wheel
Lifting Motor24V DC/4.5kw24V DC/4.5kw
Drive Motor
2x24V DC/0.82kw
Weight
Overall Weight2990kg2990kg
We reserve the right to make specification changes without notification.

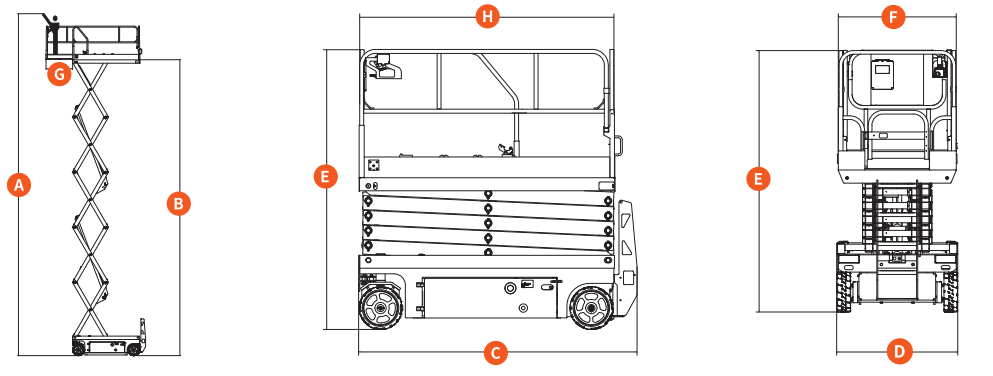

STRUCTURAL DIAGRAM
